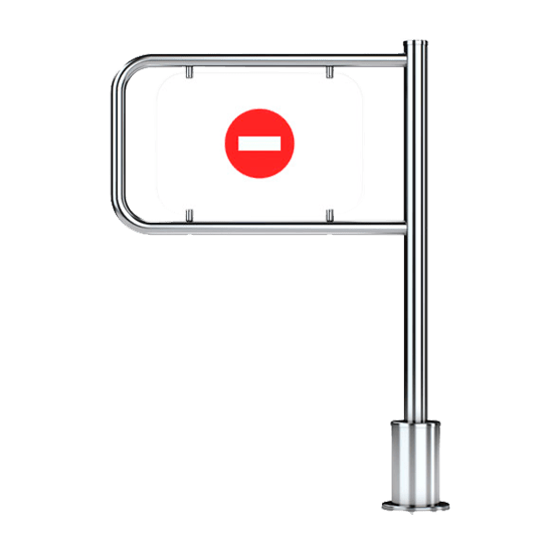

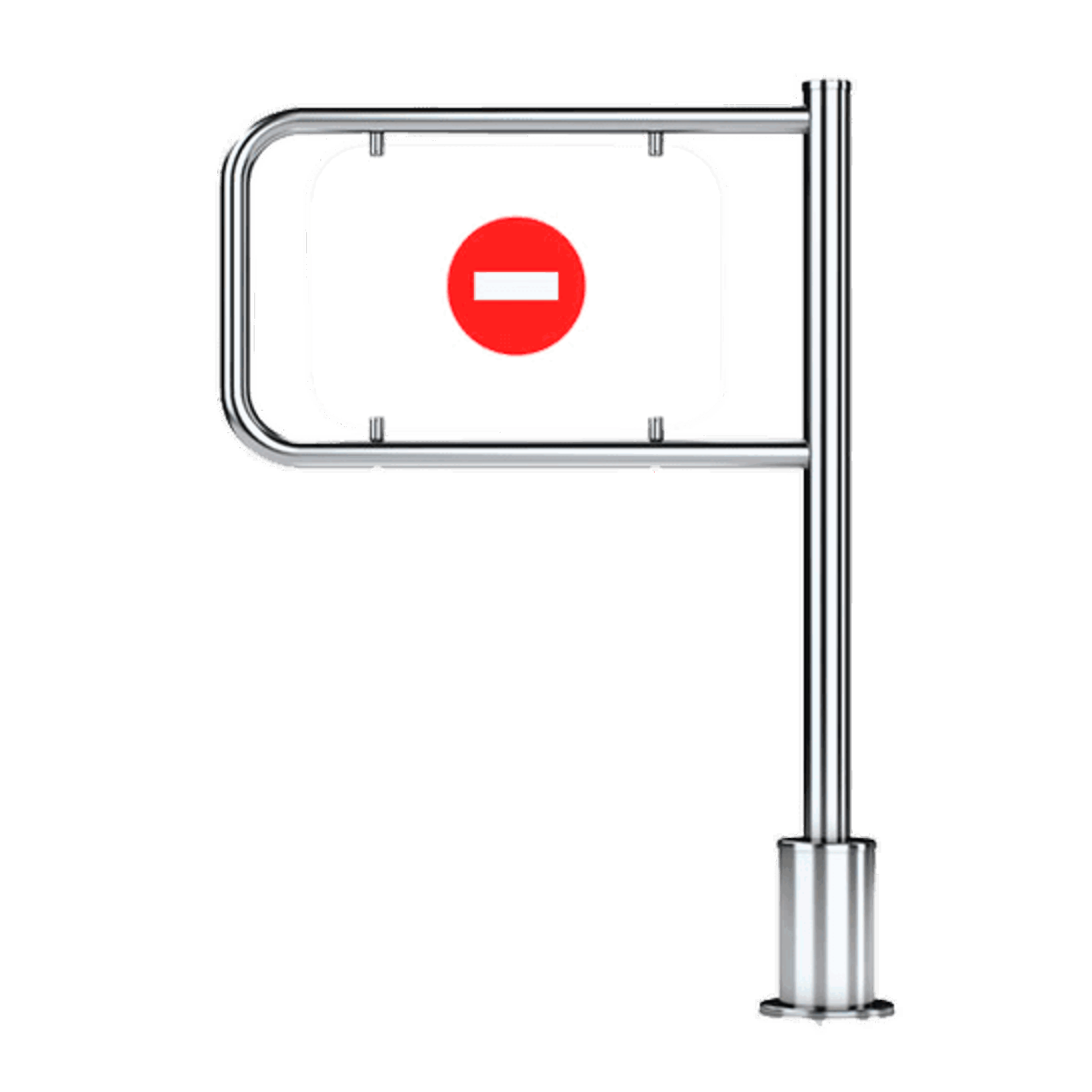

UKT-110 Swing Gate
Key Product Features:
- Mechanical (non-powered assisted) Design
- Mild Steel Body in Bright Chrome
- Left or right opening options Available
- Adjustable arm opening from 650mm – 1100mm
- Suitable for Disabled Access
- 90 Degree Operation
Electromechanical Turnstile
Emergency Release
Fail Safe
Power Voltage
Throughput, 20-40/Min
Temperature Range
More information
The UKT-110 swing gate is a simple, manual access control solution designed for controlled pedestrian entry without the need for a power supply. Ideal for offices, retail environments, and leisure facilities, it provides reliable entry and exit control while supporting DDA-compliant access. Built for ease of use and low-maintenance operation, the UKT-110 is well suited to locations where simplicity, cost-efficiency, and accessibility are key considerations.
The gate is designed to open through 90 degrees and return to the closed position under spring tension. A standard feature of these gates is the ability to be opened in the reverse direction by firm body pressure to give an emergency exit facility.
A simple adjustment negates this facility when used as an exit.
Variations
- Right-Handed Opening
- Left-Handed Opening
Specification
DESCRIPTION
VALUE
UNIT OF MEASUREMENT
Dimensions (Single Lane 600mm)
1075mm x 650mm-1100mm x 182mm
H x W x D
Weight
15
KG
Passage Width
650-1100
mm
Throughput
30
Persons/min
Electrical Input
No Power Required
N/A
